Conductive particle filled silicone produced in sheet form or as diecut flat gaskets.
Standard products

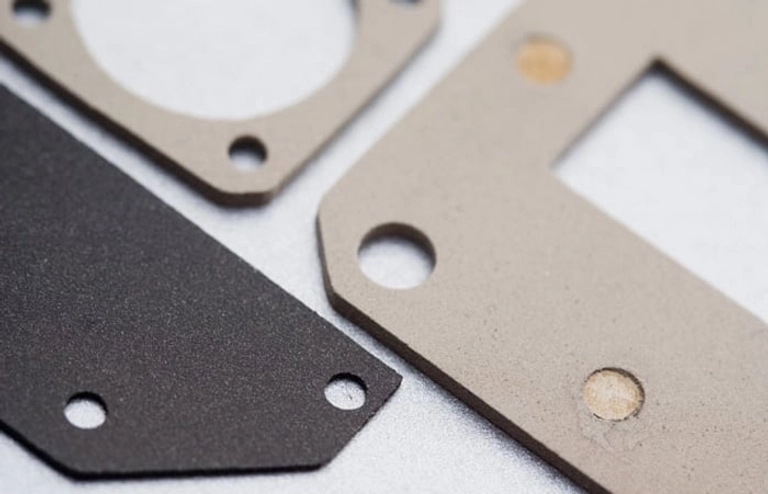

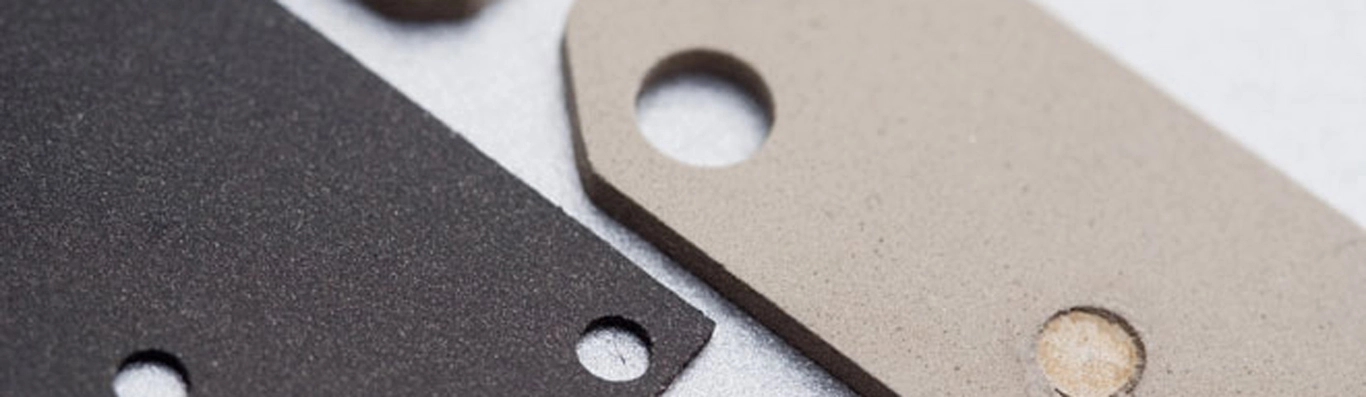

Conductive silicone die-cut gaskets
Conductive particle filled silicone produced in sheet form or as diecut flat gaskets.
Detailed information
How to order
Specify: Shielding Series-Filler code-Drawing Number or Size.
| Shielding Size | Filler Code | Drawing Number or Size |
|---|---|---|
| ES = Silicone | Q = Nickel Graphite | xxxxxxxxx-xxxxx |
| ESF = Flurosilicone | G = Silver Glass | |
| ESR = Flame Retardant Silicone* | J = Silver Aluminium | |
| H = Silver Copper | ||
| S = Silver | ||
| * Nickel Graphite only | C = Carbon |
Example / Notes
Note:
Please ensure a detailed drawing is supplied to enable a prompt and accurate quotation.
Example:
ES-J-0008-2500-3000 = ES Series Silver Aluminium 0.8mm x 250mm x 300mm.
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
