Our EMI Shielding knitted wire mesh bandage also known as knitted wire mesh cable screening or knitted wire layflat mesh is a tubular form knitted stocking supplied in flat tape form. They are available in four basic wire types – Monel, Aluminium, TCS (Tinned Copper-clad Steel) and Stainless Steel.
Standard products

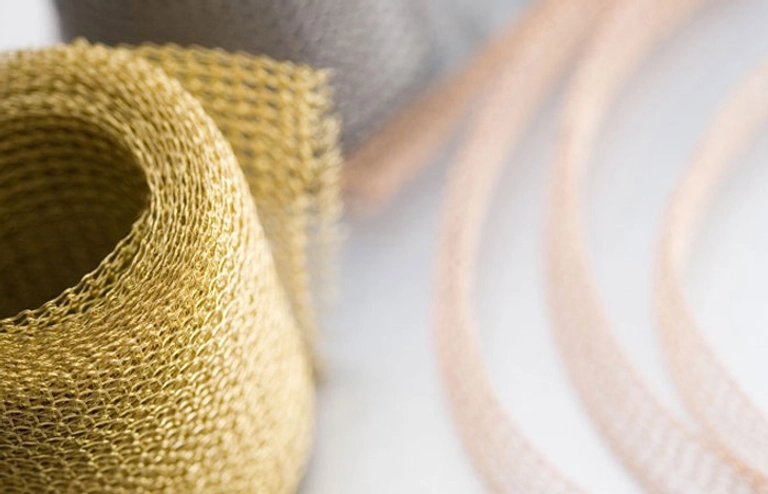

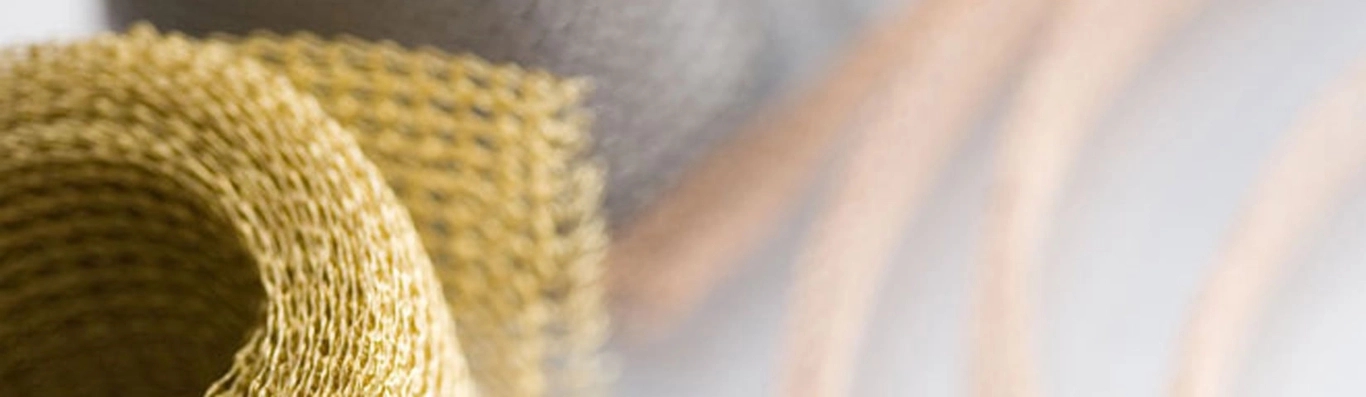

Knitted wire mesh cable screening
Our EMI Shielding knitted wire mesh bandage also known as knitted wire mesh cable screening or knitted wire layflat mesh is a tubular form knitted stocking supplied in flat tape form.
Applications
Knitted wire mesh tapes are generally used to wrap cableforms, wiring systems or conduit to provide a high integrity 4-layer screen, which, if adequately grounded, can greatly reduce radiated interference.
The tape is a nominal 0.4mm thick and should be spirally overlapped by 50% to provide full EMI shielding effectiveness. Each end should be soldered or clamped, avoiding twisting into a ‘pigtail’ which could effectively become an antenna.
Detailed information
Specifications
| Monel | BS3075-NA13 | (0.11mm diameter) |
|---|---|---|
| Aluminium 5056 | AMS 4182 | (0.13mm diameter) |
| TCS | ASTM B520 | (0.11mm diameter) |
| Stainless Steel | Alloy 304 | (0.11mm diameter) |
Performance
| Frequency | Field | Monel | Aluminium | TCS | S/Steel |
|---|---|---|---|---|---|
| 10KHz | H | 45 | 40 | 60 | 40 |
| 100KHz | H | 49 | 45 | 65 | 44 |
| 1MHz | H | 60 | 60 | 85 | 58 |
| 1MHz | E | 125 | 125 | 125 | 125 |
| 10MHz | E | 120 | 120 | 120 | 120 |
| 100MHz | E | 100 | 100 | 108 | 100 |
| 400MHz | P | 98 | 95 | 99 | 94 |
| 1GHz | P | 85 | 76 | 78 | 76 |
| 10GHz | P | 80 | 65 | 62 | 60 |
Tolerances
± 2mm on width
How to order
| Shielding Series | Wire Code | Style | Size |
|---|---|---|---|
| KW | M = Monel | 55 (flat tape) | 0127 (12.7mm) |
| A = Aluminium | 0254 (25.4mm) | ||
| T = TCS | 0508 (50.8mm) | ||
| S = Stainless Steel |
Example / Notes
Example:
KW-A-55-0127 is Aluminium mesh tape 12.7 mm wide.
