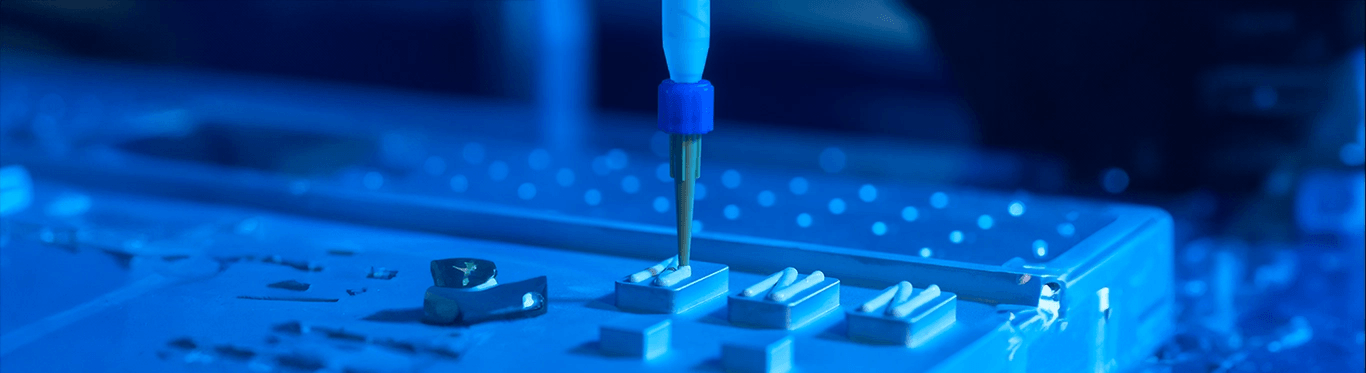

Discover advanced heat management with our dispensable thermal filler, tailored for easy integration in complex electronics and high-volume production.
Our Thermal gap filler enhances thermal conductivity and heat dissipation, ensuring device reliability and performance, making it ideal for a variety of applications.
Compatherm® Filler

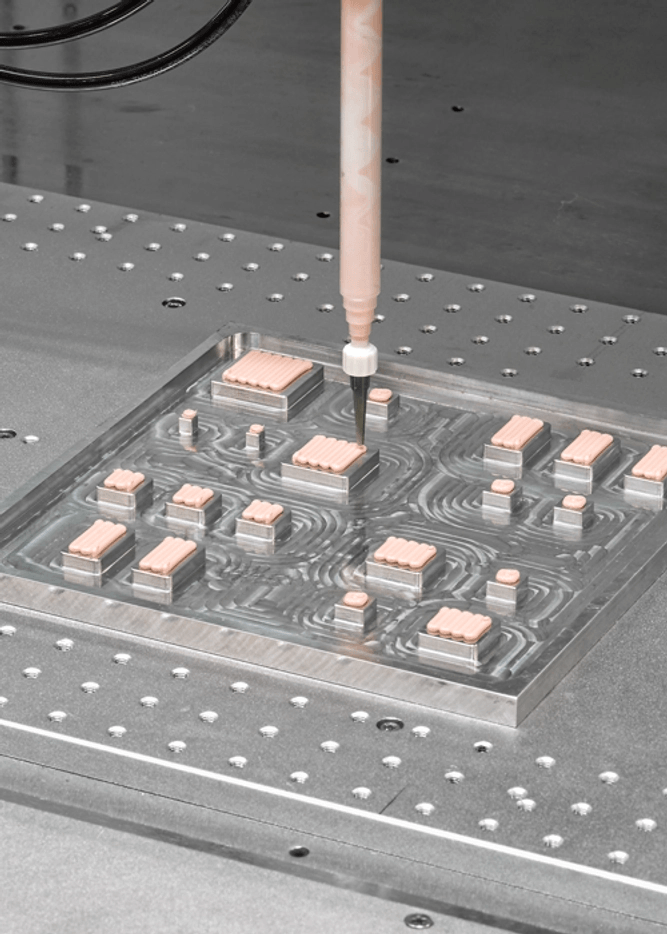

Our thermal gap filler is made using high-quality materials and developed to meet a growing need for reliable, cost-effective thermal solutions in high-tech industrial applications. Compatherm thermal filler is a liquid-dispensed thermal filler that can seamlessly conform to any arbitrary geometry and provide negligible component strain while being highly adaptable to high-volume production.
Combines thermal conductivity and low thermal resistance to ensure efficient heat dissipation, maintaining ideal operating temperatures for electronic components.
Features high conformability and minimal component stress, easily filling gaps of any shape at low pressure to facilitate perfect thermal contact without damaging sensitive parts.
Offers precision tolerance compensation and supports seamless integration with automated dispensing systems, ensuring consistent thermal performance and efficient, large-scale application
Delivers customizable solutions, tailored to meet unique thermal management challenges across a variety of applications, ensuring optimal fit and performance.
| Test standard | Unit | 9230 | 9263 | |
|---|---|---|---|---|
| Base matrix | Silicone 1-part | Silicone 1-part | ||
| Thermally conductive filler | Ceramic | Ceramic | ||
| Color | Visual | White | Pink | |
| Cure time @25°C | h | n/a | n/a | |
| Thermal Conductivity | ISO 22007-2 mod | W/(m-K) | 3.70 | 6.00 |
| Viscosity | 10s-1 | Pa·s | 380.00 | 630.00 |
| Flowrate | 3.2mm nozzle @ 90 PSI | g/min | 36 | 39 |
| Density | ASTM D792 | g/cm3 | 3.23 | 3.3 |
| Outgassing, TML | ASTM E595 Modified | % | 0.1 | 0.1 |
| Dielectric Breakdown Voltage | ASTM D149 | VAC/mm | 8 000 | 6 000 |
| Operating Temperature | ˚C | 40 to +150˚C | 40 to +150˚C | |
| BLT (Bond Line Thickness) | mm | 0.09 | 0.22 | |
| Shelf life | months | 6 | 6 |
| Test standard | Unit | 9290 | 9291 | 92100 | 92120 | |
|---|---|---|---|---|---|---|
| Base matrix | Silicone 1-part | Silicone 1-part | Silicone 1-part | Silicone 1-part | ||
| Thermally conductive filler | Ceramic | Ceramic | Ceramic | Ceramic | ||
| Color | Visual | Purple | Greyish Green | Purple | Purple | |
| Cure time @25°C | h | n/a | n/a | n/a | n/a | |
| Thermal Conductivity | ISO 22007-2 mod | W/(m-K) | 9 | 9.00 | 10.00 | 12.00 |
| Viscosity @ 10s-1 | Plate-plate rheometer | Pa·s | 750 | 510.00 | 500.00 | 400.00 |
| Flow Rate | 3.8mm nozzle @ 90 PSI | g/min | 30 | 30 | 30 | 30 |
| Density | ASTM D792 | g/cm3 | 3.1 | 2.95 | 3.03 | 3.10 |
| Outgassing, TML | ASTM E595 Modified | % | 0.08 | 0.1 | 0.06 | 0.05 |
| Dielectric Breakdown Voltage | ASTM D149 | VAC/mm | 6 000 | 6 000 | 6 000 | > 10 000 |
| Operating Temperature | ˚C | 40 to +150˚C | 40 to +150˚C | 40 to +150˚C | 40 to +150˚C | |
| BLT (Bond Line Thickness) | mm | 0.25 | 0.17 | 0.25 | 0.25 | |
| Shelf life | months | 6 | 9 | 6 | 6 |
| Test standard | Unit | 9321 | 9323 | 9330 | 9344 | |
|---|---|---|---|---|---|---|
| Base matrix | Silicone 2-part | Silicone 2-part | Silicone 2-part | Silicone 2-part | ||
| Thermally conductive filler | Ceramic | Ceramic | Ceramic | Ceramic | ||
| Color, part A | Visual | White | White | White | White | |
| Color, part B | Visual | Yellow | Yellow | Blue | Green/Pink | |
| Pot life at 25°C | h | 2 | 2 | 2 | 2.5 | |
| Cure time @25°C | h | 18 | 8 | 24 | 12 | |
| Thermal Conductivity | ISO 22007-2 mod | W/(m·K) | 2 | 2 | 3 | 4 |
| Viscosity (mixed) | Brookfield 10rpm | Pa·s | 380 | 250 | 276 | 300 |
| Flowrate | 2mm nozzle at 50 PS | g/min | 40 | 42 | 60 | 36 |
| Hardness | ASTM D2240 | Shore 00 | 55 | 50 | 44 | 50 |
| Density | ASTM D792 | g/cm3 | 2.9 | 2.05 | 2.84 | 3.1 |
| Volume Resistivity | ASTM D257 | Ω∙cm | 2.05x1013 | 7.41x1012 | 2.23x1012 | 2.16x1014 |
| Dielectric Breakdown Voltage | ASTM D149 | VAC/mm | 7 000 | 9 900 | 10 000 | 8 000 |
| Dielectric Constant at 1MHZ | ASTM D150 | 16.92 | 4.53 | 6.2 | 8.31 | |
| Operating Temperature | ˚C | -40 to +200˚C | -40 to +150˚C | -40 to +150˚C | -40 to +200˚C | |
| Outgassing, TML | ASTM E595 Modified | % | 0.14 | 0.1 | 0.39 | 0.1 |
| Flammability | UL94 (file:E483565) | V-0 | ||||
| BLT (Bond Line Thickness) | mm | 0.095 | 0.11 | 0.08 | 0.25 | |
| Shelf life | months | 9 | 6 | 6 | 6 |
| Test standard | Unit | 9361 | 9370 | 9390 | |
|---|---|---|---|---|---|
| Base matrix | Silicone 2-part | Silicone 2-part | Silicone 2-part | ||
| Thermally conductive filler | Ceramic | Aluminium | Ceramic | ||
| Color, part A | Visual | White | Grey | White | |
| Color, part B | Visual | Green | Grey | Blue | |
| Pot life at 25°C | h | 2 | 2.5 | 3 | |
| Cure time @25°C | h | 15 | 24 | 16 | |
| Thermal Conductivity | ISO 22007-2 mod | W/(m·K) | 6 | 7 | 9.3 |
| Viscosity (mixed) | 10s-1 | Pa·s | 240 | 233 | 270 |
| Flowrate | 2mm nozzle at 50 PS | g/min | 40 | 18 | 30 |
| Hardness | ASTM D2240 | Shore 00 | 55 | 50 | 55 |
| Density | ASTM D792 | g/cm3 | 3.15 | 2.34 | 2.95 |
| Volume Resistivity | ASTM D257 | Ω∙cm | 1.19x1011 | 3.83x1012 | 7.11x1010 |
| Dielectric Breakdown Voltage | ASTM D149 | VAC/mm | 8 000 | 1 337 | 10 000 |
| Dielectric Constant at 1MHZ | ASTM D150 | 5.64 | 187 | 10 | |
| Operating Temperature | ˚C | -40 to +200˚C | -40 to +150˚C | -40 to +150˚C | |
| Outgassing, TML | ASTM E595 Modified | % | 0.22 | 0.05 | 0.35 |
| Flammability | UL94 (file:E483565) | ||||
| BLT (Bond Line Thickness) | mm | 0.21 | 0.18 | 0.25 | |
| Shelf life | months | 9 | 6 | 9 |
| Test standard | Unit | 9110 | |
|---|---|---|---|
| Base matrix | Silicone 2-part | ||
| Thermally conductive filler | Ceramic | ||
| Color, part A | Visual | White | |
| Color, part B | Visual | Pink | |
| Pot life at 25oC | h | 1 | |
| Cure time @25°C | h | 24 | |
| Thermal Conductivity | ISO 22007-2 mod | W/(m-K) | 1 |
| Viscosity (mixed) | 10s-1 | Pa·s | A:15/B:15 |
| Flow Rate | 2mm nozzle @ 50 PSI | g/min | TBD |
| Hardness | ASTM D2240 | Shore 00 | 20 |
| Density | ASTM D792 | g/cm3 | 1.77 |
| Volume Resistivity | ASTM D257 | Ω∙cm | 1.42x1013 |
| Dielectric Breakdown Voltage | ASTM D149 | VAC/mm | 7 000 |
| Dielectric Constant at 1MHZ | ASTM D150 | 4.75 | |
| Operating Temperature | ˚C | -40 to +150˚C | |
| Outgassing, TML | ASTM E595 Modified | % | 0.6 |
| Flammability | UL94 (file:E483565) | ||
| BLT (Bond Line Thickness) | mm | 0.11 | |
| Shelf life | months | 8 |
