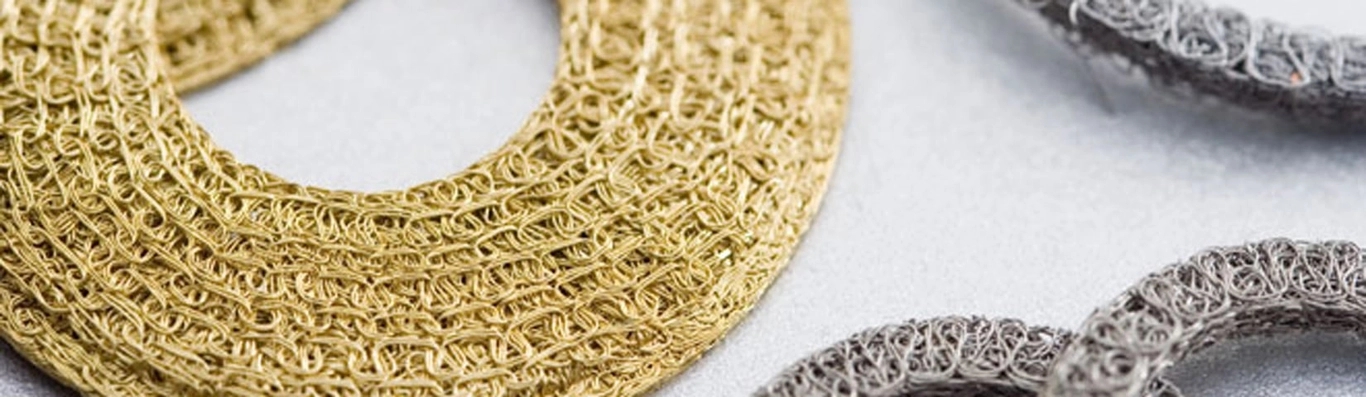

Compressed knitted wire mesh washers, gaskets and seals utilise knitted wire mesh formed under pressure into resilient high density profiles.
Standard products

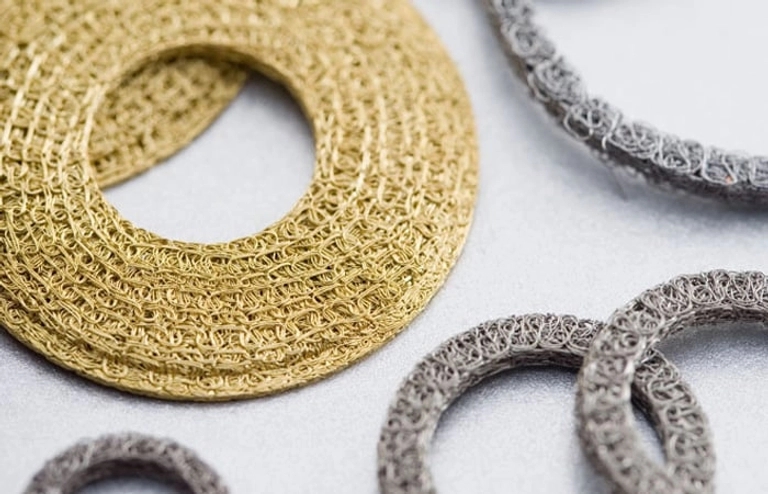

Compressed knitted wire gaskets
Compressed knitted wire mesh washers, gaskets and seals utilize knitted wire mesh formed under pressure into resilient high density profiles.
Applications
Compressed knitted wire mesh profiles are used as gland rings, grounding buttons, magnetron seals and numerous other applications where a high density mesh is required for effective EMI shielding.
Each application will be individual and related to the specific and mechanical properties of the gasket so please contact us to discuss your requirements.
Detailed information
Specifications
| Monel | BS3075-NA13 | (0.11mm diameter) |
|---|---|---|
| Aluminium 5056 | AMS 4182 | (0.13mm diameter) |
| TCS | ASTM B520 | (0.11mm diameter) |
| Stainless Steel | Alloy 304 | (0.11mm diameter) |
Performance
| Frequency | Field | Monel | Aluminium | TCS | S/Steel |
|---|---|---|---|---|---|
| 10KHz | H | 45 | 40 | 60 | 40 |
| 100KHz | H | 49 | 45 | 65 | 44 |
| 1MHz | H | 60 | 60 | 85 | 58 |
| 1MHz | E | 125 | 125 | 125 | 125 |
| 10MHz | E | 120 | 120 | 120 | 120 |
| 100MHz | E | 100 | 100 | 108 | 100 |
| 400MHz | P | 98 | 95 | 99 | 94 |
| 1GHz | P | 85 | 76 | 78 | 76 |
| 10GHz | P | 80 | 65 | 62 | 60 |
Tolerances
± 0.5mm
How to order
| Shielding Series | Wire Code | Style | Size (or) Drawing number |
|---|---|---|---|
| KR | M = Monel | 50 (ring) | xxxx-xxxx or xxxx-xxxx |
| A = Aluminium | |||
| T = TCS | |||
| S = Stainless Steel |
Example / Notes
Example:
KR-S-50-0254-0159-0032 is a stainless steel washer 25.4 x 15.9 x 3.2mm
For further details on how to specify, please contact us.
