Standard products

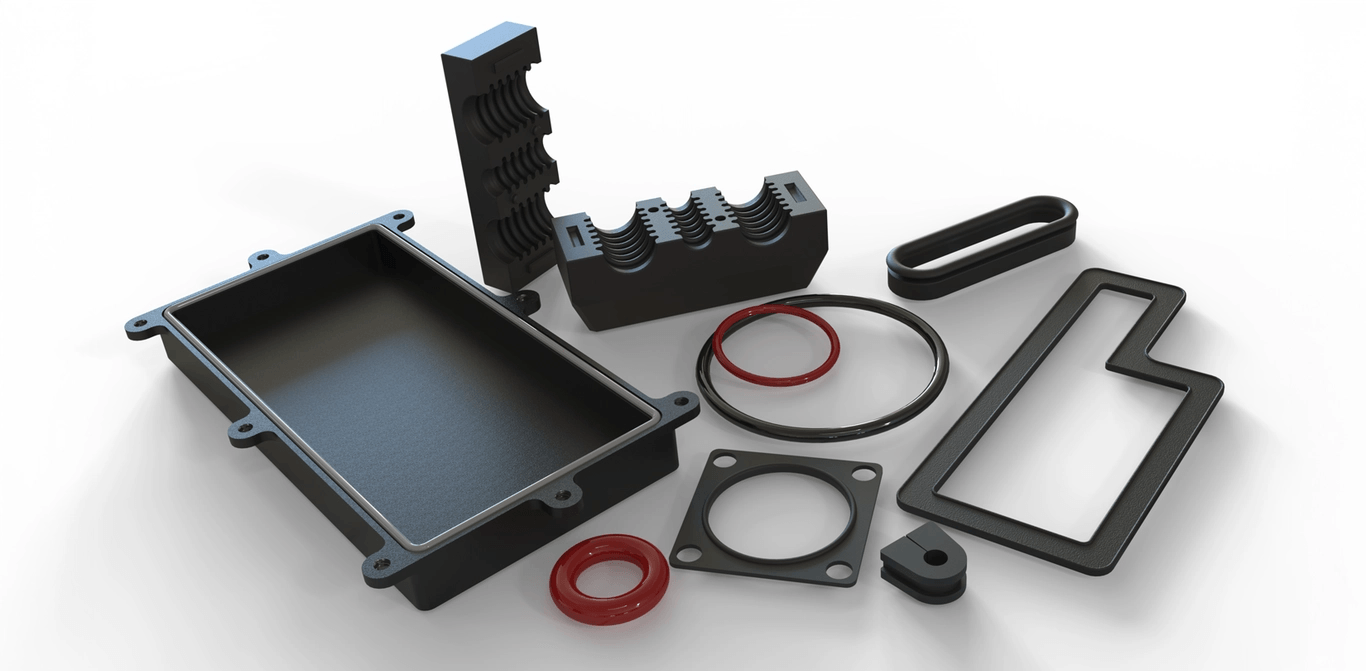

Nolato delivers IP sealing solutions and spacers, dampeners, and holders. Engineered to meet demanding IP ratings, our products ensure robust environmental protection and stability.
Nolato offers a comprehensive range of IP sealing solutions that can also function as spacers, holders, or dampeners in addition to sealing, utilizing a variety of production methods to meet diverse application requirements. Our expertise in materials science and manufacturing processes ensures high-quality, reliable seals that protect your electronics from environmental contaminants. We provide IP sealing solutions for a wide range of applications, used in IP sealings up to IP69K applications.
Nolato provides high-performance silicone gaskets designed for robust environmental protection, ranging from IP65 for dust and water jet resistance, up to the demanding IP69K standard for high-pressure, high-temperature washdown.
Hydrophobic nature effectively prevents water ingress.
Maintains sealing properties under extreme temperature conditions.
Conforms to uneven surfaces and maintains seals under high pressure.
Resists degradation from chemicals and environmental factors, ensuring long-lasting performance.
Custom gaskets produced through careful material selection and specialized processes for demanding applications.
Compashield®

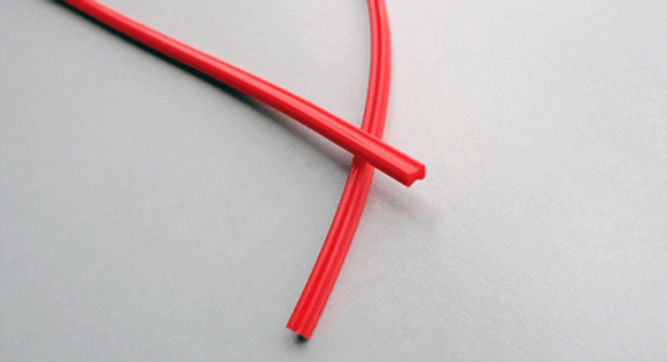

Extrusion involves forcing silicone rubber through a shaped die to create a continuous profile. This process is ideal for producing long lengths of gaskets with a constant cross-section. A key advantage of extruded gaskets is the ability to splice the ends together, creating o-rings. This allows for the production of o-rings with a hollow core.
Nolato has extensive experience in silicone extrusion, including splicing techniques to create specialized o-ring solutions. Our material expertise ensures that the extruded gaskets offer excellent sealing performance and long-term reliability. Compashield extruded IP sealings are a cost-effective solution for many applications.
Compashield®

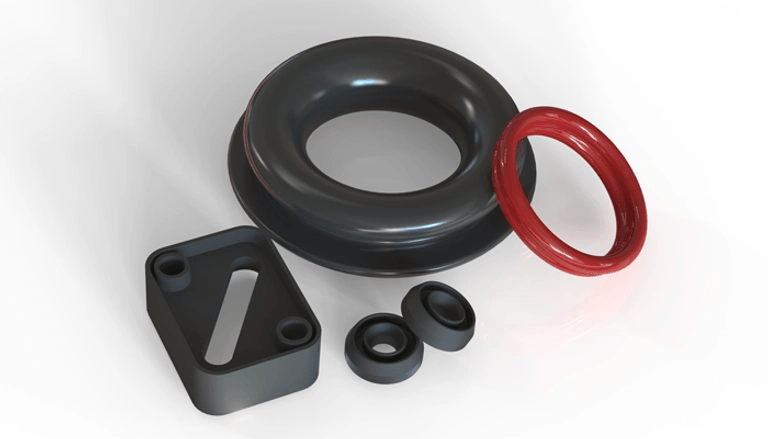

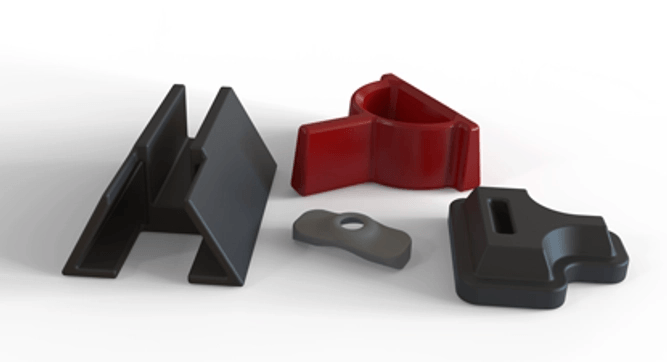

Molding involves shaping silicone rubber in a mold cavity under heat and pressure. This process is suitable for producing gaskets with complex geometries and intricate features.
Nolato's molding capabilities encompass compression molding, injection molding, and liquid silicone rubber (LSR) molding. Notably, Compashield molded IP sealings can also be manufactured using overmolding, where silicone is molded over a plastic or metal part to provide both sealing and mechanical support. These advanced molding techniques allow us to produce high-precision, custom-molded gaskets that meet the most demanding requirements. Compashield molded IP sealings are often used in applications requiring complex shapes, tight tolerances, or integrated functionality.
Trishield®

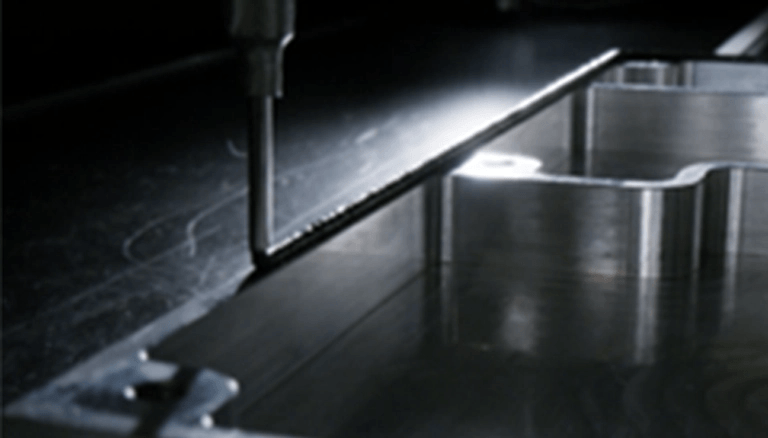

Dispensing involves applying a liquid silicone material directly onto a part using automated dispensing equipment. The material then cures in place to form a gasket.

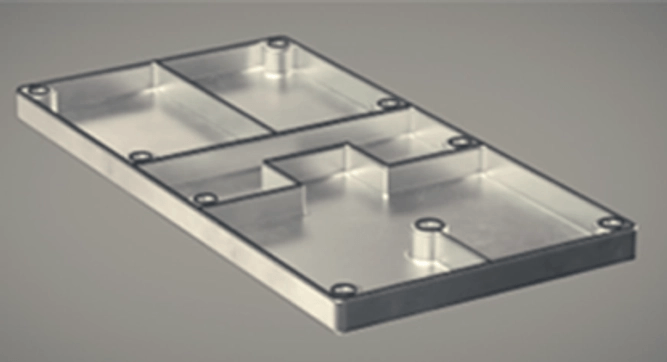

Nolato's Trishield dispensing technology is a specialized form-in-place (FIP) gasket solution. This technology is particularly well-suited for applications with challenging geometries or tight spaces.
Silicone gaskets offer a number of key benefits that make them ideal for IP sealing applications:
Silicone gaskets offer exceptional temperature resistance, maintaining their durability, flexibility, and effective sealing across a broad temperature range from -50°C to +250°C (-58°F to +482°F). This makes them well-suited for demanding environments.
Silicone's inherent flexibility allows gaskets to conform to irregular surfaces, ensuring a tight and effective seal. They also exhibit low compression set, meaning they retain their shape and sealing properties even after prolonged compression.
Silicone gaskets offer high chemical resilience, resisting degradation from oils, fuels, acids, bases, and many solvents.
Silicone's durability and longevity reduce the need for frequent replacements and minimize downtime. They resist UV radiation, ozone, and environmental weathering.
By employing these diverse production methods and leveraging our material science expertise, Nolato delivers IP sealing solutions that offer:
Production and partners
An EMC production partner is a manufacturer licensed by Nolato to use our materials and technologies for large-scale production, with ongoing support from Nolato Silikonteknik. This support extends all the way from research and development to quality control. Today we have numerous EMC production partners for our Trishield® products and manufacturing around the world, with a primary focus on Asia. We work with a growing number of partners and welcome experienced companies to join us.
