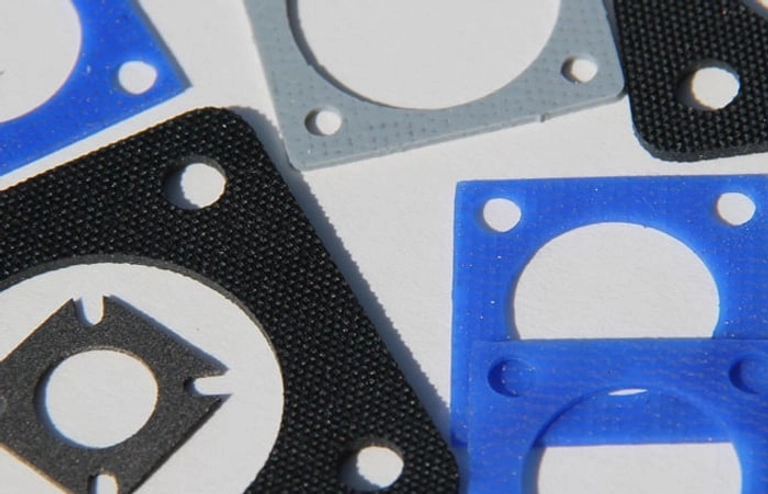

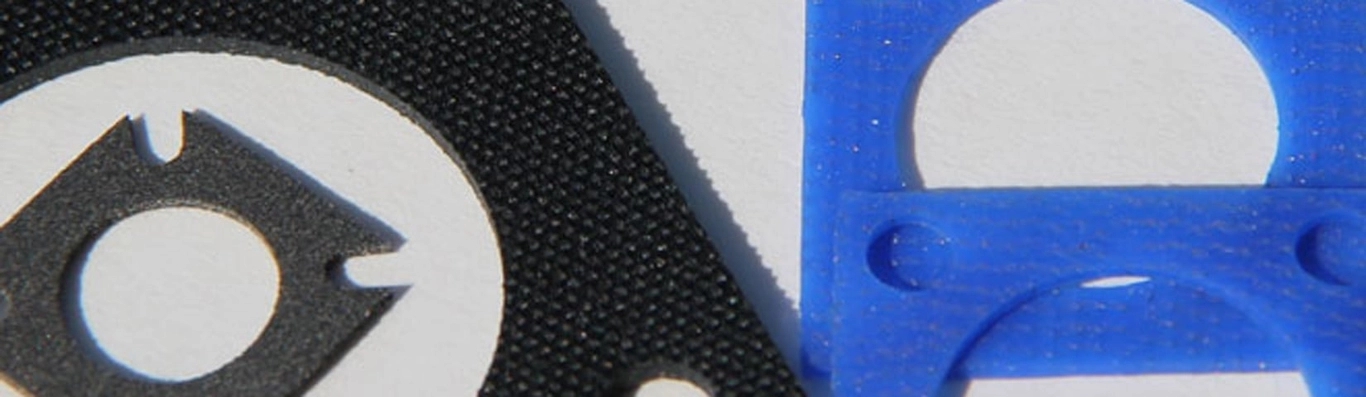

Our range of connector gaskets includes precision diecut gaskets made from a large selection of materials, both conductive and non-conductive.
Both EMI shielding connector gaskets & environmental shielding connector gaskets are available as waveguide and connector gaskets to MIL-C-81511, MIL-C-5015, MIL-C-38999 and MIL-C-26482 plus industry standard configurations including BN, BNC, D, WG, WR, IEC, UG, AN and special profiles cut to customers specifications.
Standard products
Connector gaskets
Our range of connector gaskets includes precision diecut gaskets made from a large selection of materials, both conductive and non-conductive.
Applications
Generally connector gaskets are cut from thin reinforced materials, such as conductive filled aluminium mesh or silicone filled expanded Monel foil, to ensure that the compressive forces exerted ion the connector do not distort the gasket. However, for certain applications oriented wires in silicone or conductive silicone EMI shielding materials are selected for their specific properties.
Most gaskets can be made from all standard materials but it is important to consider the ‘land-width’ around the periphery of a connector gasket if conductive filled aluminium mesh or silicone filled expanded Monel foil are specified. In some instances, where a gasket has fixing holes on each corner, the holes are extended outwards to slots, which helps to prevent damage to the gasket during production and fitting.
EMI shielded connector gaskets are fitted in the normal manner and particular care should be taken when passing a gasket over a threaded connector body. Avoid the use of conductive adhesives as they tend to adversely affect the sealing characteristics of most types of gasket.
Detailed information
Specifications
The specifications and temperature ranges of each material type can be found in the relevant material sections.
Performance
The EMI shielding performance of each material type can be found in the relevant product sections.
How to order
For AN connector gaskets specify the relevant part number from the table below.
For all other waveguide and connector gaskets, state the material type and drawing number, MIL reference or standard specification as applicable or contact us to discuss your requirements.
Our standard sizes
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
How to measure gaskets and o-rings

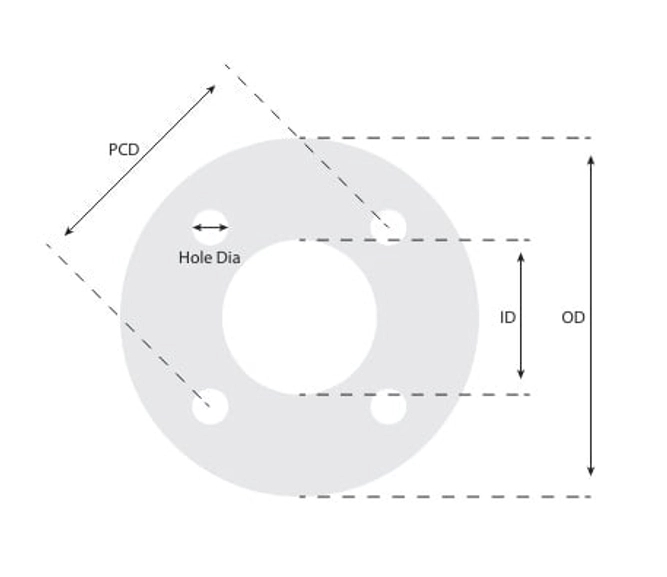

Gaskets can come in various shapes and sizes. We have put together a guide to help you measure some of the most common shaped gaskets correctly. Please follow the methods to help you successfully measure a gasket.
How to measure gaskets and o-rings
