STANDARD PRODUCTS

Compashield®: Advanced EMI Shielding Gaskets for Optimal Protection

Compashield EMI shielding gaskets offer a comprehensive range of molded and extruded solutions tailored for EMI protection.

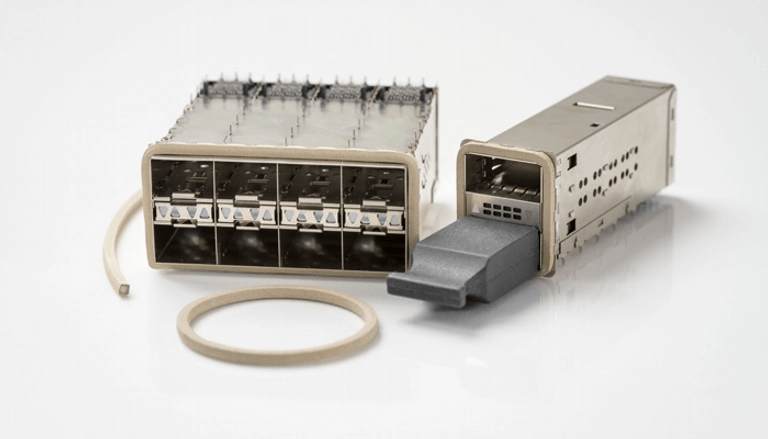

Compashield specializes in creating custom-shaped gaskets, including cans, frames, tubes, sheets, and components, all designed to meet the stringent requirements of today's electronic devices.
Compashield®

Superior EMI Shielding with Conductive Gasket Technology

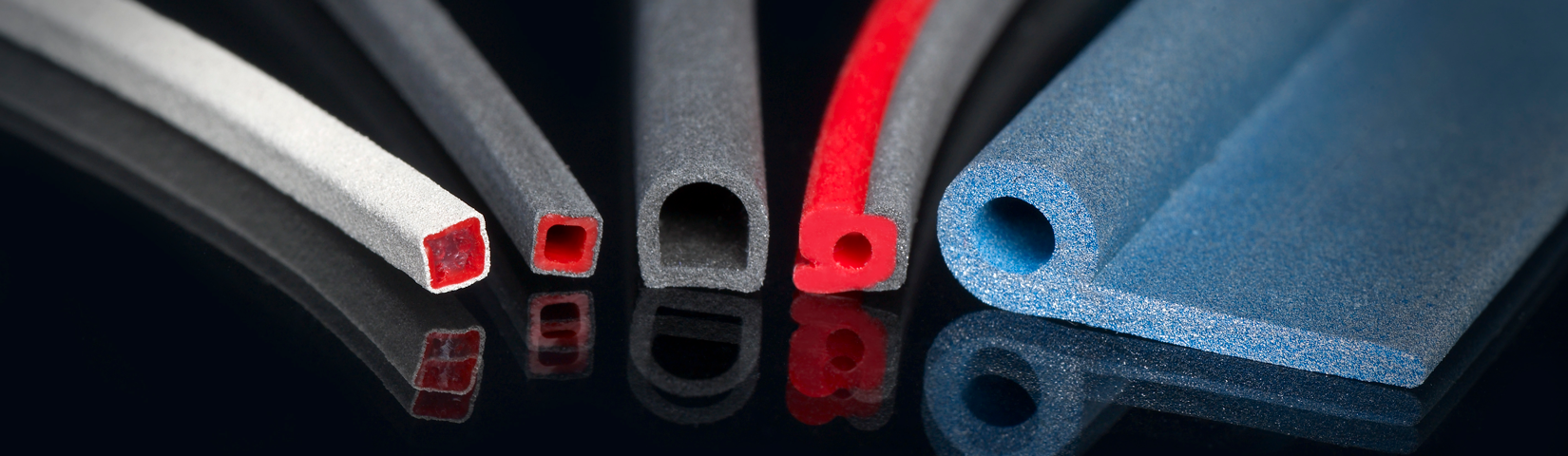

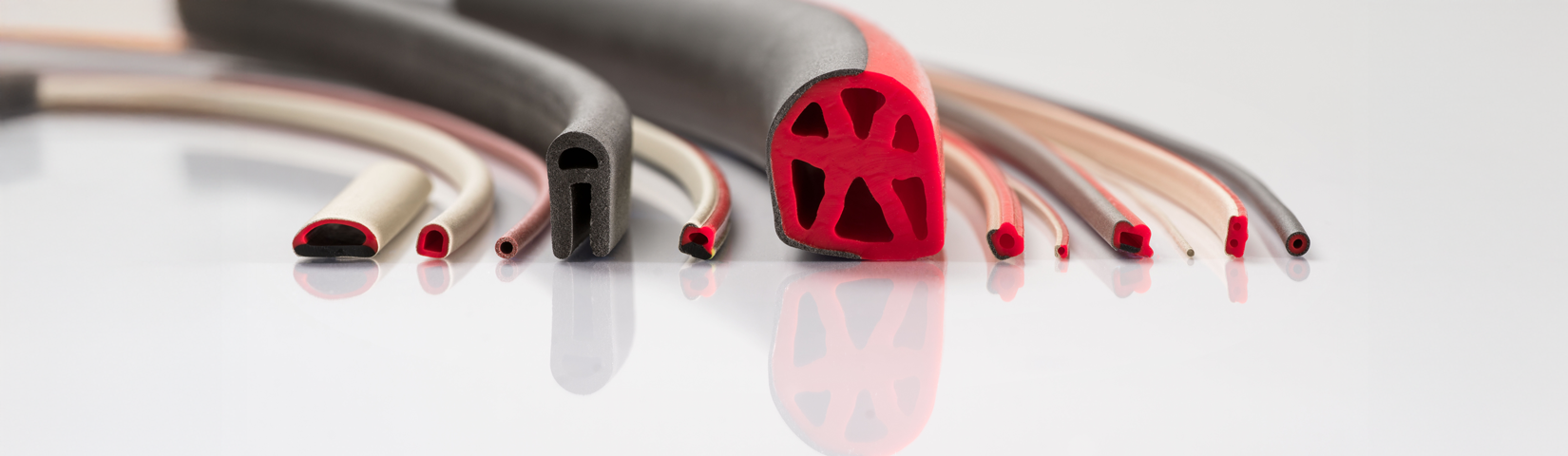

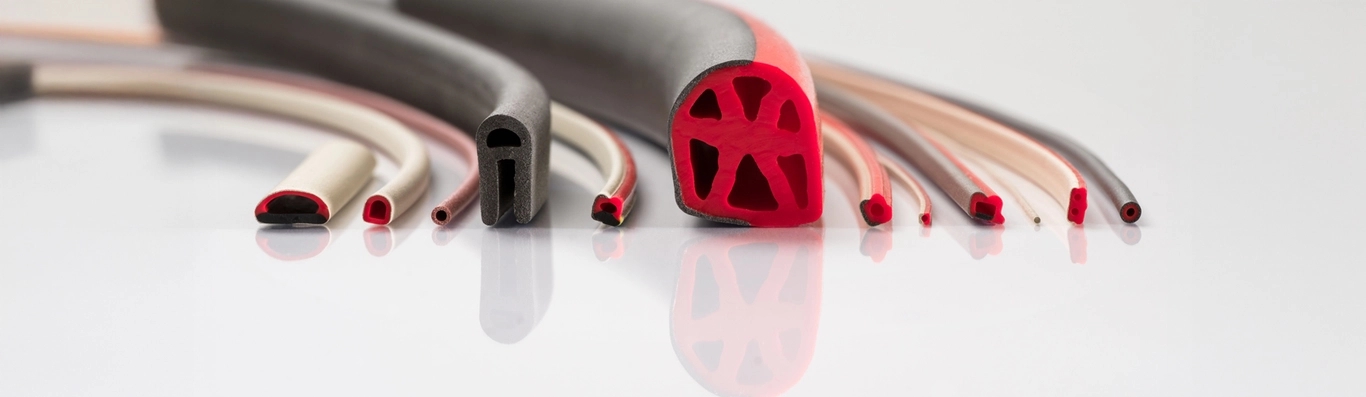

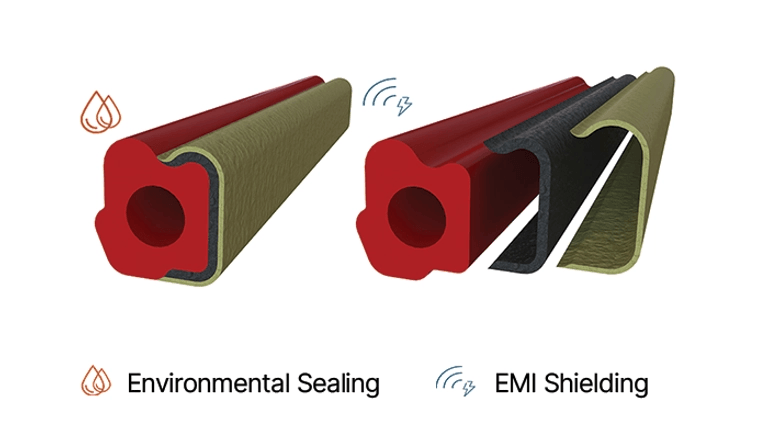

Compashield is our own brand for molded and extruded EMI shielding gaskets in the form of cans, frames, tubes, sheets and components. The technique involves 2K-molding and over-molding, as well as extruding electrically conductive silicone rubber into a precise size and shape. The cross-section can be rectangular, solid or hollow in various shapes and dimensions.
Compashield logo
Learn more about our Compashield molding solutions
Learn more about our Compashield extrusion solutions

Enhanced Performance and Durability of Compashield® EMI Gaskets

Better compression set >30%

Ensures lasting performance and durability, maintaining its shape and effectiveness over time, significantly reducing the need for replacements and maintenance.

Lower compression force >20%

Requires less pressure to achieve an optimal seal, making it easier to install and reducing stress on components, thus extending the lifespan of both the gasket and the assembly.

Twice the tensile strenght

Offers enhanced durability and resistance to tearing and damage during installation and operation, ensuring a reliable seal and protection against environmental factors.

Electrical resistance improved by 50%

Provides superior insulation and protection against electrical interference, enhancing device performance and safety in critical applications.

EMI gasket designed for the future

Crafted with cutting-edge materials and technology to meet the evolving demands of industries, ensuring compatibility with next-generation devices and applications.

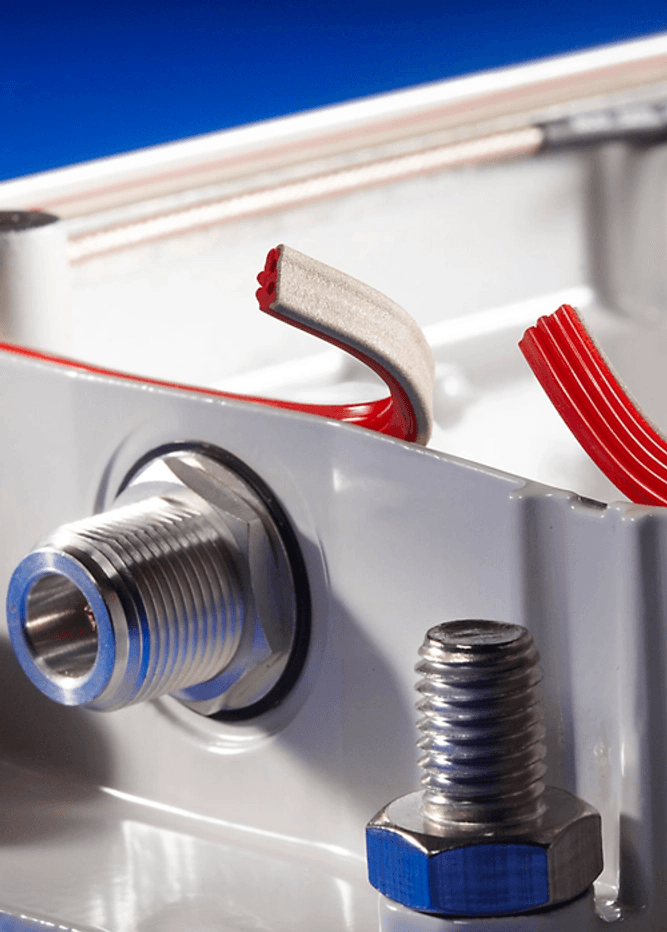

Compashield product

Matrix and downloads

Compashield material matrix & datasheets
Test Procedure Unit 8604 8630 8633 8641 8650 1540 8605 8642 8648 8651
Elastomer base Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone
Conductive filler Ag/Cu Ag/Glass Ag/Glass Ni/C Ag/Al NA Ag/Cu Ni/C Ni/C Ag/Al
Production process Molding Molding Molding Molding Molding Extrusion Extrusion Extrusion Extrusion Extrusion
Shape
Hardness ISO 7619 Shore A 55 70 55 55 50 50 78 80 80 80
Volume resistivity Mil-DTL 83528C m0hmcm 3 2 9 30 7
2 17 6 4
Flammability UL94 V1


V1
V0
V0 V0 V1
Material safety datasheets Ag_Cu  Ag_Glass  Ag_Glass  Ni_C  Ag_Al  Rubber  Ag_Cu  Ni_C  Ni_C  Ag_Al

PRODUCTION AND PARTNERS

Production center and production partners

An EMC production partner is a manufacturer licensed by Nolato to use our materials and technologies for large-scale production, with ongoing support from Nolato Silikonteknik. This support extends all the way from research and development to quality control. Today we have numerous EMC production partners for our Trishield® products and manufacturing around the world, with a primary focus on Asia. We work with a growing number of partners and welcome experienced companies to join us.

Find your EMC sales representative and agency

Digital world

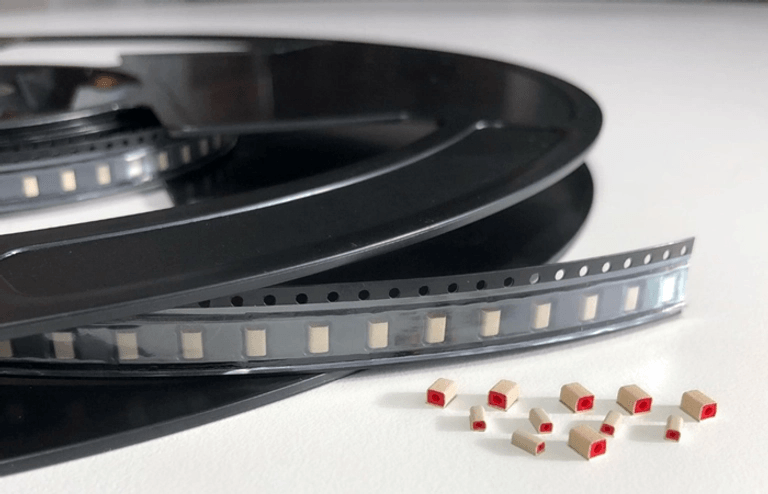

Compashield® SMT Pad: Enhancing Connectivity with EMI Shielding Gaskets

The Compashield SMT Pad is used as a grounding contact on printed circuit boards commonly used in the electronics industry and anywhere high electrical conductivity is needed in a compressible, resilient form, e.g. (mobile phones, base-stations, power amplifiers, laptop computers, PDAs, cameras & radar systems, infotainment systems, etc.).

Features and Benefits of Compashield® SMT Pad

The Compashield SMT Pad stands out for its flexibility and compressibility, capable of accommodating tolerances and closing gaps between PCBs and other components. This not only provides a reliable grounding contact but also enhances the device's overall EMI protection.

Order free samples

SMT-EMI-Pad products
