Discover: SMT Pad

EMI shielding technologies

Compashield SMT Pad benefits:

Grounding and shielding products should ensure electrical performance without breaking under mechanical or environmental stress throughout the lifetime of the product.

Compashield SMT Pad ensures reliable grounding performance in electronic applications. The Pads are delivered in tape and reel packaging for automated placement and soldering reflow using standard SMT equipment. The Compashield SMT Pad is used as a grounding contact on printed circuit boards commonly used in the electronics industry.

Compashield® is our own brand for molded and extruded EMI shielding gaskets in the form of cans, frames, tubes, sheets and components. The technique involves molding or extruding.

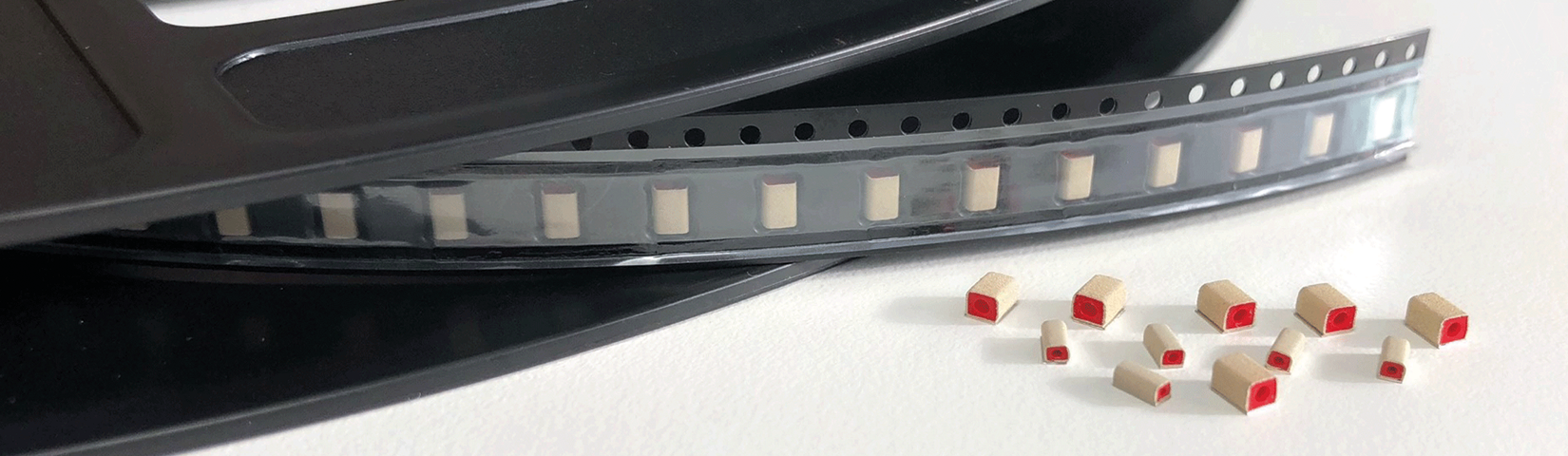

We offer free samples. By ordering free samples you can discover the Compashield SMT Pad features and benefits. The Pads are delivered in tape-and-reel packaging.



Order-free-samples

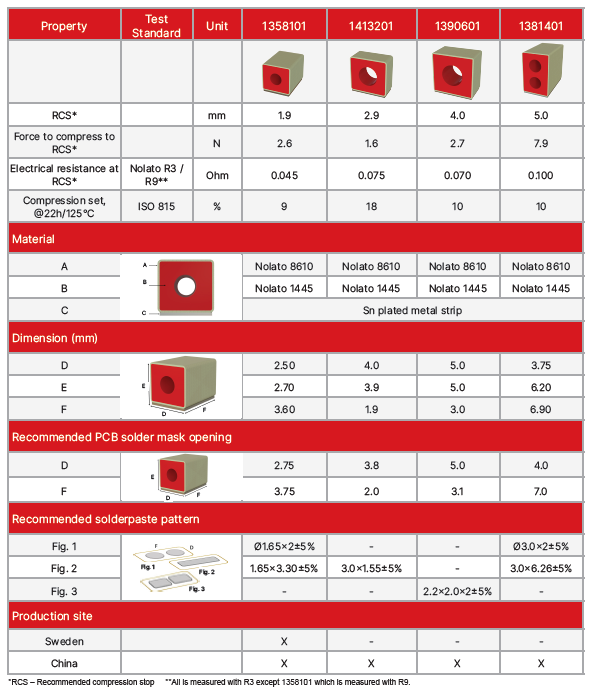

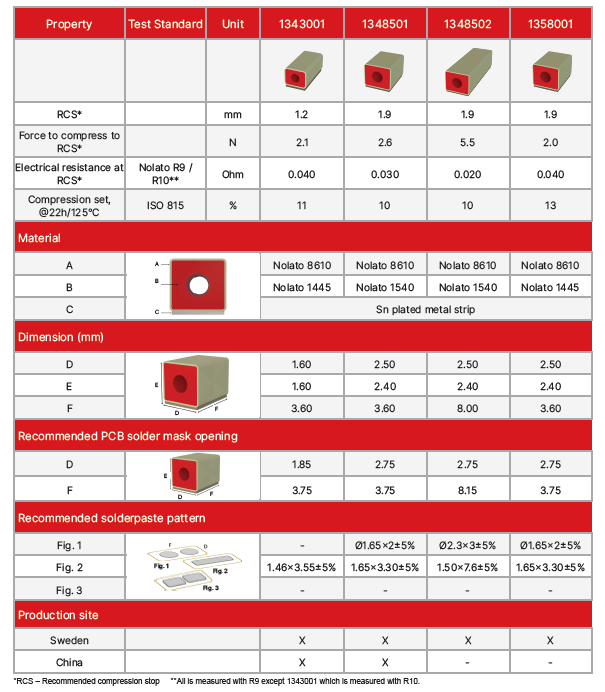

  • The Compashield SMT Pad is available in three different versions, but different cross sections and length can be developed to fit any demand
  • The free sample dimension is W:1,70 mm, H:1,60mm, L:3,60mm
  • When you have evaluated the sample, you can get a quote for the right SMT Pad that matches your application




Download data sheet
