STANDARD PRODUCT

Compatherm Pad® : Thermal Heating Pads

Unlock superior heat management with our thermally conductive silicone pads, engineered for efficient heat transfer in a wide range of electronic applications.

These pads, designed to enhance cooling in devices provide an effective thermal interface that minimizes thermal resistance and maximizes heat dissipation, ensuring your electronics perform reliably at optimal temperatures.

Compatherm® Pad

Silicone Thermal Pads for Effective Heat Management

Our selection of silicone thermal pads uses high-quality materials designed to meet the most rigorous application requirements. These soft, thermally conductive silicone pads can be used where heat needs to be conducted between a component and a heat-dissipating surface, without any additional stress, or to bridge a gap for increased heat dispersion. Compatherm pads are available in a wide range of thicknesses, mechanical properties, liner solutions, and thermal performance.

Compatherm Pad logo

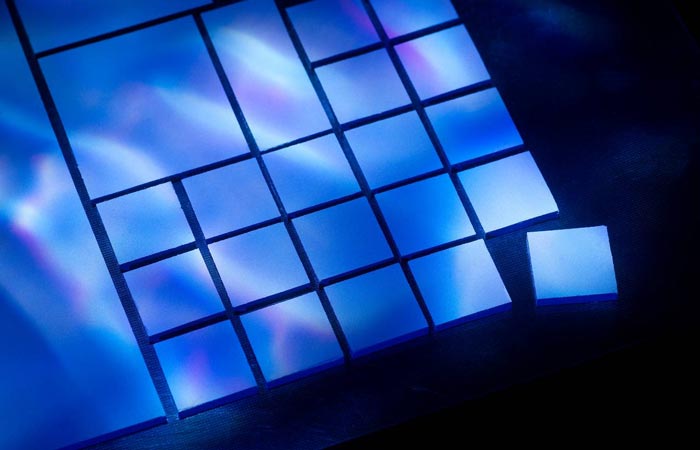

Copmpatherm pad

Features of Compatherm® Thermal Pads

Superior heat conductivity

Achieve excellent thermal transfer with our silicone thermal pads, ensuring components stay cool under intense operations, enhancing device longevity and reliability.

Stress-free application

Soft and adaptable, these pads conform to surfaces at low pressure, ensuring a perfect fit for delicate electronics without risking damage during installation.

Versatile options

Choose the perfect fit from our selection, ranging from thermal conductive pads to specialized silicone thermal pads, catering to a wide variety of cooling needs.

Cost-effectiveness

Enjoy high-performance cooling solutions at competitive prices, allowing for efficient heat management without breaking the bank.

Tailored solutions

Leverage our customization options to meet specific thermal management challenges, offering personalized solutions that perfectly match your requirements.

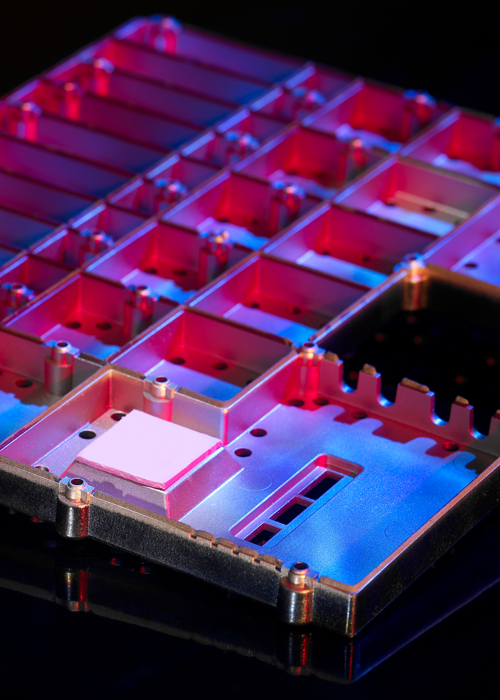

Compatherm Pad product
Compatherm® Pad matrix & datasheets
Test standard Unit 9410 9411 9420 9421 9422  9423 9430 9431 9432 9433 9434  9440 9441
Base matrix Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone
Silicone Silicone Silicone Silicone Silicone
Thermally conductive filler Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic
Color Visual Pink Lt Blue Lt Blue Pink Lt Blue/
Lt Yellow
Pink Grey Blue Brown Grey Blue Green Green
Thickness Range ASTM D374 mm 0.25-5.00 0.50-5.00 0.25-5.00 0.50-5.00 0.50-5.00 0.50-5.00 0.25-5.00 0.25-5.00 1.00-5.00 0.25-5.00 0.25-5.00 1.00-5.00 1.00-5.00
Thermal Conductivity ISO 22007-2 mod W/(m-K) 1 1.2 2 2.5 2 2.5 3 3 3 3 3 4 4
Hardness ASTM D2240 Shore 00 40 9 40 40 25 60 60 40 10 28 40 40 8
Density ASTM D792 g/cm^3 2.07 2.1 2.73 2.70 2.73 2.70 2.65 3.10 2.92 2.65 3.00 3.10 3.10
Volume Resistivity ASTM D257  Ω·cm 2.5·10^13  1.7·10^13 3.5·10^12 8.5·10^12 8.4·10^14 1.5·10^14 2.1·10^14
4.7·10^14
2.1·10^15 2.1·10^13 3.4·10^11 4.0·10^12
4.0·10^12
Dielectric Breakdown Voltage ASTM D149 VAC/mm 5 000 8 000 5 000 5 000 5 000 5 000 500 8 000 7 000 500 8 000 8 000 8 000
Dielectric constant @ 1MHZ ASTM D150 6.33 6.62 6.33 7.47 7.07 7.09 22.8 7.43 5.48 22.8 5.66 7.90 7.90
Outgassing, TML ASTM E596 Modified % 0.61 0.59 0.06 0.13 0.1  0.13 0.06 0.04 0.05 0.06 0.10 0.10 0.10
Flammability UL94 (file: E483565) V-0  V-0 V-0   V-0   V-0 V-0   V-0



Test standard Unit 9450 9451  9452 9453  9460  9470 9470S  9471 9472 9473 9480  9611
Base matrix Silicone Silicone Silicone  Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone
Thermally conductive filler Ceramic Ceramic Ceramic  Ceramic Ceramic Ceramic Ceramic
Ceramic Ceramic Ceramic Ceramic Carbon
Color Visual Black Grey Grey Grey Lt Blue Lt Grey Lt Grey  Pink Lt Grey Pink Blue Dk Grey
Thickness Range ASTM D374 mm 0.50-5.00 0.50-5.00 1.00-5.00 1.00-5.00 1.0-5.0 1.00-5.00 1.00-5.00 1.00-5.00 1.00-5.00 1.00-5.00 0.50-5.00 1.00-5.00
Thermal Conductivity ISO 22007-2 mod W/(m-K) 5 5 5 5 6 7 7 7 7 7 8 16
Hardness ASTM D2240 Shore 00 40 28 60 30 60 40 15 40 20 20 40 40
Density ASTM D792 g/cm^3 3.10 3.07 3.10 3.16 3.24 2.55 2.55 3.10 2.55 3.10 3.10 2.76
Volume Resistivity ASTM D257  Ω·cm 3.2·10^14
3.2·10^14 2.0·10^14 4.3·10^12  5.32·10^13 6.7·10^12  6.7·10^12 3.1·10^12  6.7·10^12 3.1·10^12
1.0·10^13 500
Dielectric Breakdown Voltage ASTM D149 VAC/mm 7 000 5 000 5 000 10 000 10 000 1 500 1 500 8 000 1500 8 000 8 000 n/a
Dielectric constant @ 1MHZ ASTM D150 7.57 7.57 6.39 6.3 14.5 26.4 26.4 7.68 26.4 7.68 7.7 n/a
Outgassing, TML ASTM E596 Modified % 0.04 0.04 0.33 0.2 0.13 0.23 0.58 0.3 0.23 0.3 0.3 0.2
Flammability UL94 (file: E483565) V-0 V-0      V-0 V-0 V-0   V-0
