Do you have Grounding or EMI challenges?
EMI shielding technologies
Do you have Grounding or EMI challenges…?
As a design engineer you work with various design challenges. Now and then you can encounter problems with interference that can be difficult to catch.
The causes of EMI are numerous and include both man-made and natural sources. The results can range from temporary disturbances and data losses to system failure and even loss of life.
The Compashield SMT Pad
In automotive electronic devices, grounding and shielding products should ensure electrical performance without breaking under mechanical or environmental stress throughout the lifetime of the product.
Features and Benefits
The flexible and easily compressible SMT Pad can take up tolerances and close the gap between a PCB and other contacting surfaces, in addition to providing a reliable grounding contact.
- Large contact area vs metal spring provides a better utilization of the PCB area and creates space for more components.
- Excellent chemical bonding between the gasket and the solderable metal strip which guarantees that the SMT Pad stays in position on the PCB during the full life cycle.
- Superior bounce back and compression set makes the product vibrations safe and have full electrical contact, even if the conditions are tough.
- The production take place in a clean and controlled environment and each individual SMT Pad is controlled by a camera vision system before packaging into tape and reel.
- The non-abrasive SMT Pad ensures no scratching on the contacting surface.
- Low electrical resistance and low compression force.
- Replaces most metal finger & fabric gasket.
Applications
The Compashield SMT Pad is used as a grounding contact on printed circuit boards commonly used in Automotive and Electronics industry, Advanced driver assistance systems, cameras, radars, infotainment systems, power-train electronics and ECU’s.
Compashield® is our own brand for molded and extruded EMI shielding gaskets in the form of cans, frames, tubes, sheets and components. The technique involves molding or extruding.
Order free samples
The Compashield SMT Pad is available in several different versions, and a various of cross sections and lengths can be developed to meet specific demands.
The free sample dimension is W:2,50mm, H:2,40mm, L:3,60mm (art.no: 1348501)

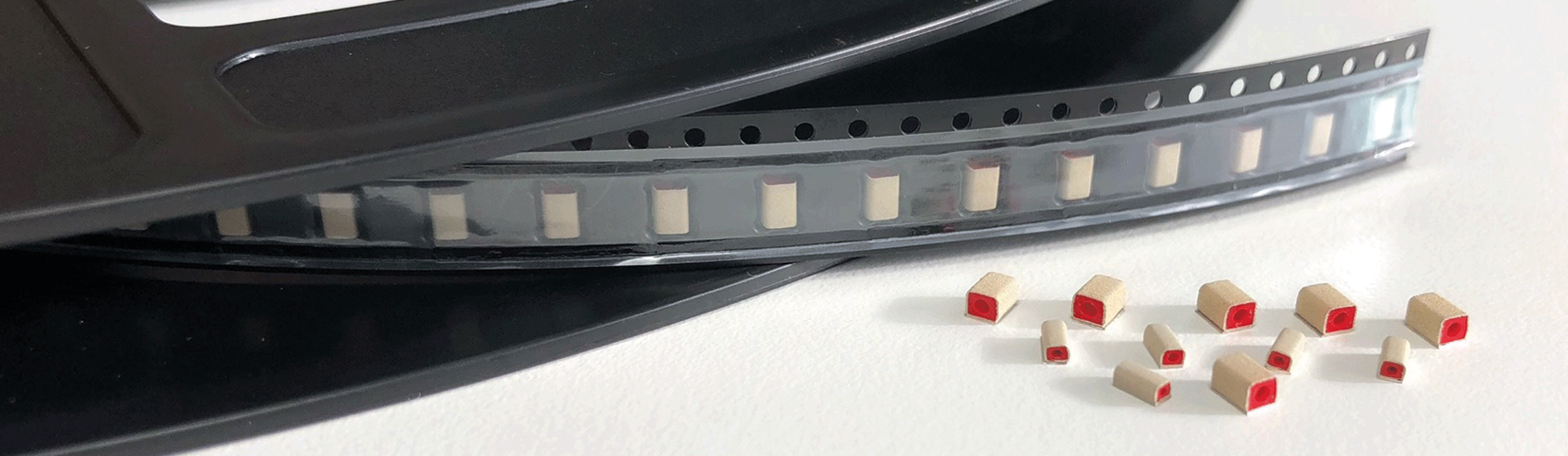

By ordering FREE samples you can discover the Compashield SMT Pad features and benefits. The Pads are delivered in tape-and-reel packaging.
Fill in the form below and press "Order”. We will send you your samples asap.

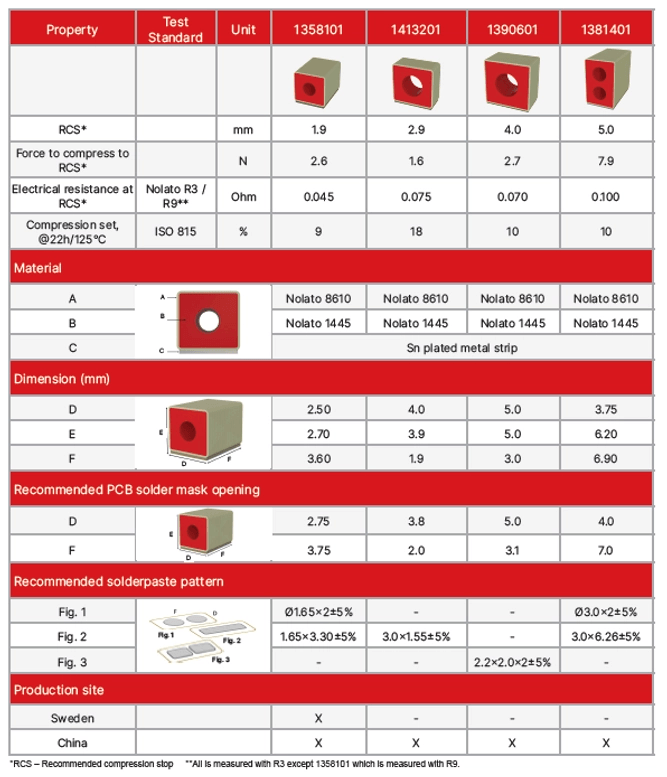

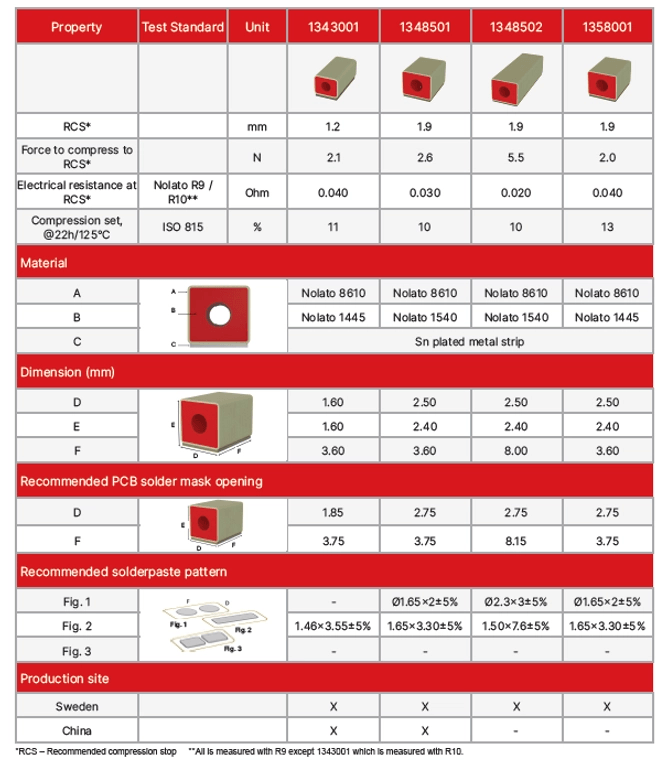

SMT pad properties and dimensions.
