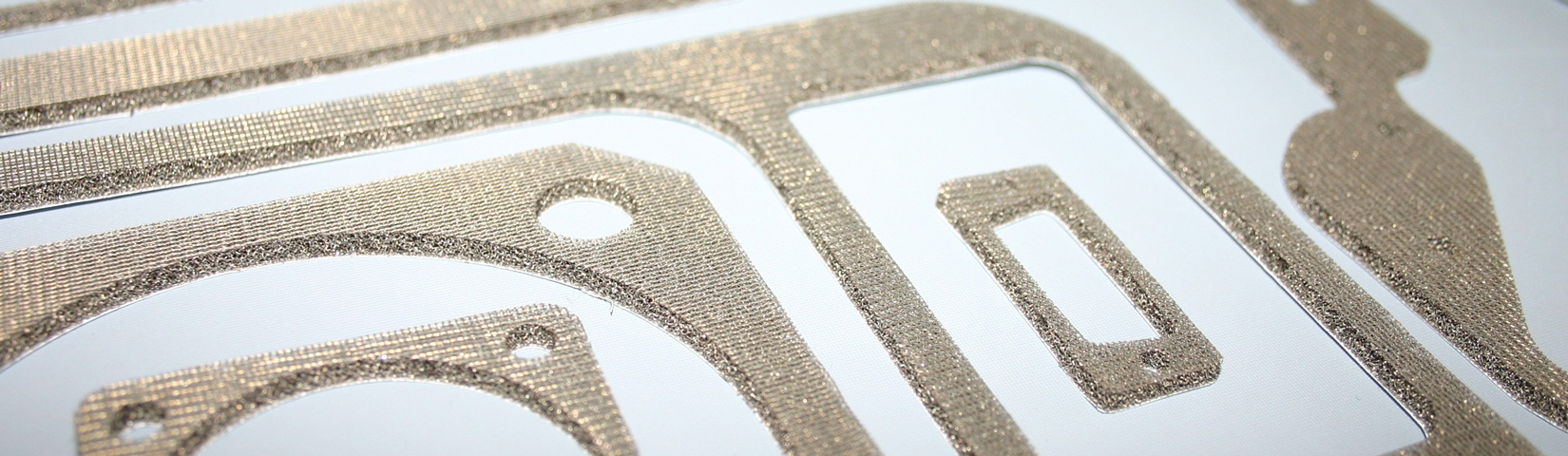

A conductive polyurethane sponge with a conductive fabric bonded to each face.
STANDARD PRODUCTS
Conductive sponge gaskets

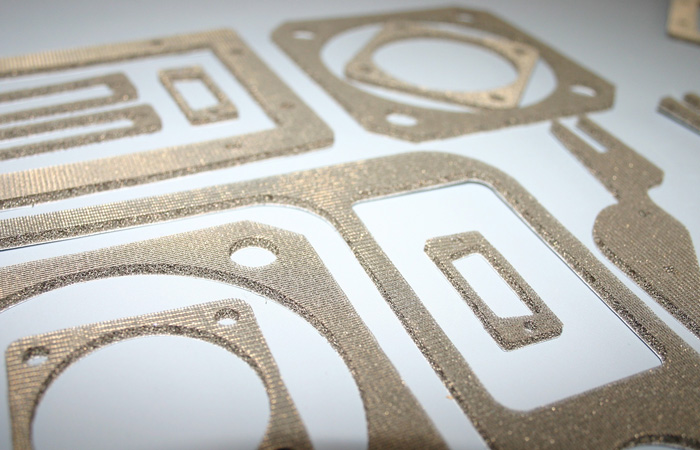

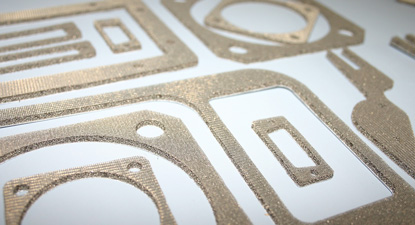

A conductive polyurethane sponge with a conductive fabric bonded to each face, this highly compressible material is available in a range of thicknesses and can be supplied with or without a conductive adhesive on one face.
The material is highly conductive in all planes (X, Y, & Z axis) with a typical resistance of ≤1.00W. It can be easily die-cut and is ideal for EMI shielded connector gaskets or where a gap needs to be filled without high compression.
The material is highly conductive in all planes (X, Y, & Z axis) with a typical resistance of ≤1.00W. It can be easily die-cut and is ideal for EMI shielded connector gaskets or where a gap needs to be filled without high compression.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
Detailed information
How to order
Specify: Shielding Series-Part Number/Thickness-Size/Drawing Number-Finish
| Shielding Series | Part Number | Size | Finish |
| MS = Conductive Sponge | 1013 = 1.3mm ±0.3 Thick | xxxx | S/A = Self Adhesive |
| 1025 = 1.5mm ±0.5 Thick | N/A = No Adhesive | ||
| 1035 = 3.5mm ±0.5 Thick |
Example / Notes
Notes:
Maximum material width 1200mm ±5mm.
Example:
MS-1030-5000-5000-S/A is conductive sponge 3.0 mm thick 500 x 500 mm with self-adhesive.
Maximum material width 1200mm ±5mm.
Example:
MS-1030-5000-5000-S/A is conductive sponge 3.0 mm thick 500 x 500 mm with self-adhesive.
