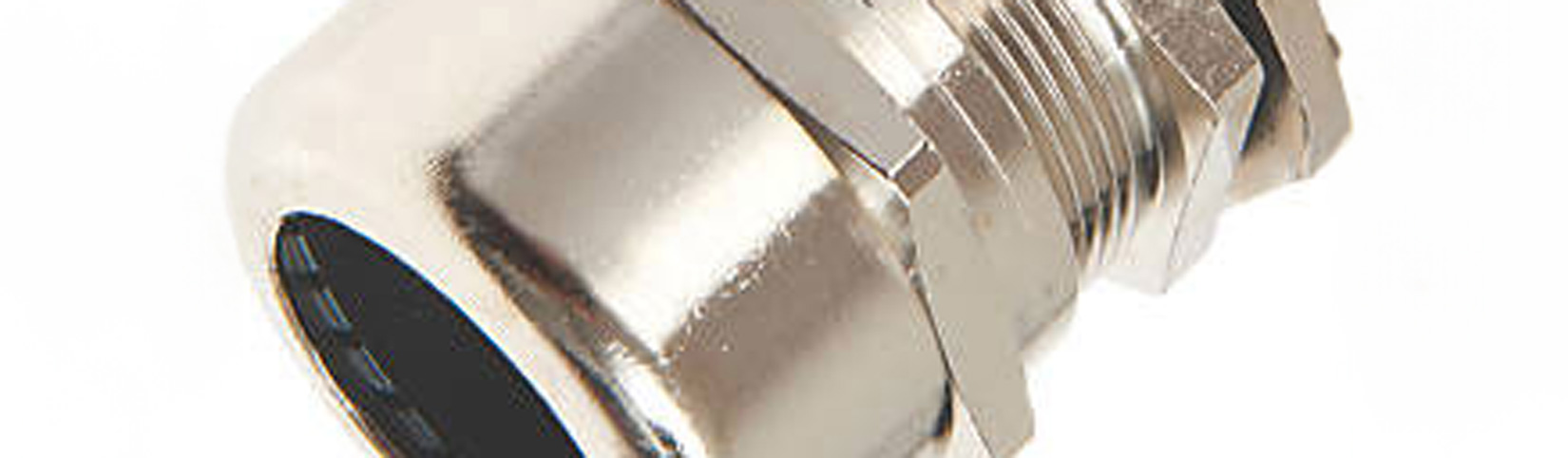

Nolato PPT´s EMI cable glands are available in either brass or stainless steel.
STANDARD PRODUCTS
EMI shielded cable glands

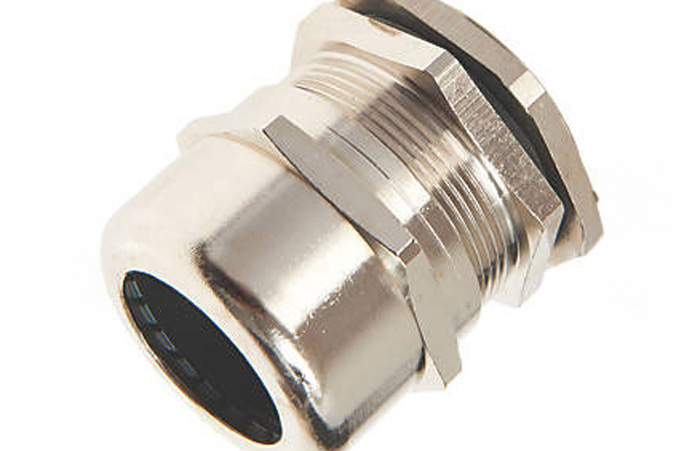

Nolato PPT’s EMI cable glands are available in either brass or stainless steel.
Their construction is made up of 4 parts. The main body, the knitted mesh olive, the cap and the locknut.
The cable gland works like any normal cable gland. However, the primary difference is that we use a knitted wire mesh olive.
Once the cap is tightened the body compressed the olive around the cable, thus providing a high level of electrical conductivity between the cable and the gland body.
Their construction is made up of 4 parts. The main body, the knitted mesh olive, the cap and the locknut.
The cable gland works like any normal cable gland. However, the primary difference is that we use a knitted wire mesh olive.
Once the cap is tightened the body compressed the olive around the cable, thus providing a high level of electrical conductivity between the cable and the gland body.
Applications
Nolato PPT’s EMI Shielded Cable Gland provide a high level of RFI/EMI shielding for screened cables passing through enclosure walls.
Detailed information
Specifications
Color – Grey
IP Rating – IP68
Resistance Type – Corrosive Resistant
Suitable Cable Shape – Round
Suitable Cable Size – 5 – 10mm²
Suitable Hole Size – M16
IP Rating – IP68
Resistance Type – Corrosive Resistant
Suitable Cable Shape – Round
Suitable Cable Size – 5 – 10mm²
Suitable Hole Size – M16
Performance
Typical Attenuation dB
| Frequency | Field | |
| 10KHz | H | 72 |
| 100KHz | H | 85 |
| 100KHz | E | 132> |
| 1MHz | H | 91 |
| 1MHz | E | 129> |
| 10MHz | E | 119> |
| 100MHz | E | 119> |
