STANDARD PRODUCTS

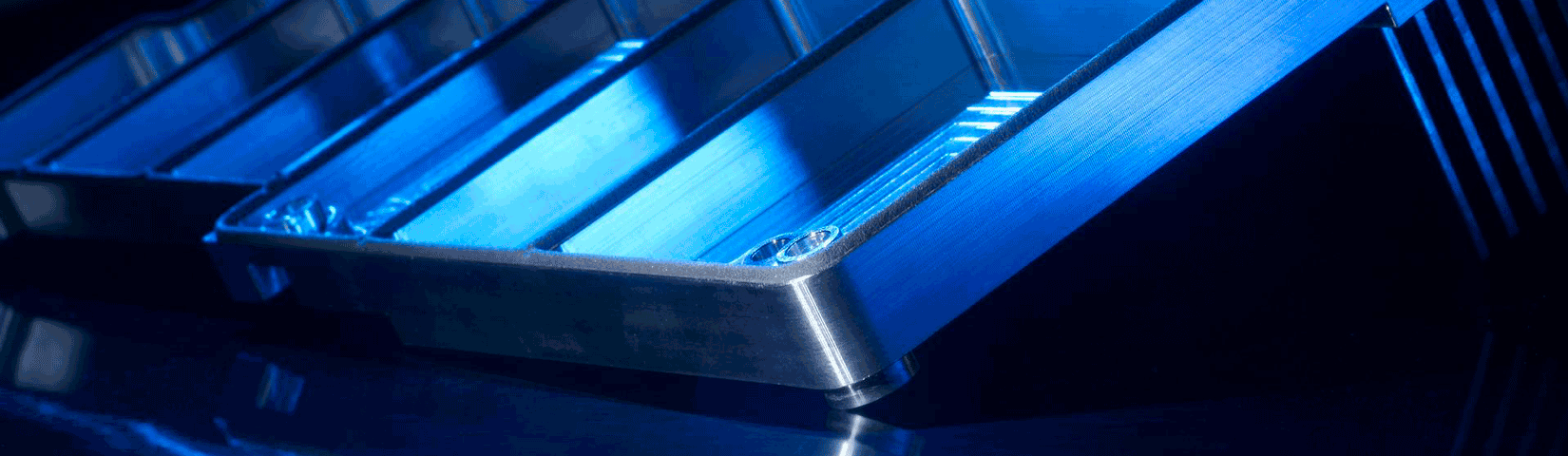

Trishield-Custom and precision dispensed gaskets

Our own unique dispensing technology that combines excellent shielding effectiveness with superior mechanical performance.

Trishield®

Custom and precision-dispensed gaskets

Trishield®, Nolato's unique dispensing technology, has been widely used for over a decade by leading companies in high-tech industries requiring EMI shielding. Trishield® combines excellent shielding effectiveness with superior mechanical performance. The Trishield® technology is used to form the dispensed EMC gaskets into a triangular shape, thus reducing material usage and the compression forces required.
Trishield logo

Trishield®

  • Lower material consumption
  • Optimal height/width ratio
  • Up to 60% lower compression force
  • Double the output
  • Excellent shielding properties
  • Global access

Matrix and downloads

trishield material matrix & datasheets
Trishield 2.0
Test Procedure Unit 8520  8700  8710  8800  8813  8817  8950
Elastomer base Silicone Silicone Silicone Silicone Silicone Silicone SiIicone
Conductive filler N/A Ag/Cu Ag/Al Ag/Ni Ni/C Ni/C Ni/C
Production process Dispensing Dispensing Dispensing Dispensing Dispensing Dispensing Dispensing
Shape
Hardness ISO 7619 Shore A 40 55 65 55 73 63 45
Volume resistivity Mil-DTL 83528C m0hmcm 2 8 15 8 12 25
Flammability UL94 V0 V0 V0 V0 V0 V0 V0
Material safety datasheets Rubber  Ag_Cu  Ag_Al  Ag_Ni  Ni_C  Ni_C  Ni_C

PRODUCTION AND PARTNERS

Production center and production partners

An EMC production partner is a manufacturer licensed by Nolato to use our materials and technologies for large-scale production, with ongoing support from Nolato Silikonteknik. This support extends all the way from research and development to quality control. Today we have numerous EMC production partners for our Trishield® products and manufacturing around the world, with a primary focus on Asia. We work with a growing number of partners and welcome experienced companies to join us.

Find your EMC sales representative and agency
